soms, end frames, gussets and pedestals cast in- tegral. Each truck bolster is carried on restraint rockers which resist lateral pressure to the extent of approximately 27 1/2 per cent of the truck load- ing. Truck equalization consists of semi-elliptic springs carried on the journal boxes, the inner ends of the two springs on one side of the truck being connected by an equal beam; the outer ends of the springs are connected to the truck frame by spring-cushioned links. A radius bar, equipped with a centering device attached to the adjacent truck frame, is applied to each four-wheel truck to prevent "nosing" ac- tion of the truck on tangent track. Diesel Engine Each of the two Diesel engines in this locomo- tive is a Baldwin four-cycle, vertical, eight-cyl- inder inline engine equipped with an Elliott-Buchi |
 Pressure and temperature dials and switchers for fuel pumps and generators. Nothing is left to chance. |
|

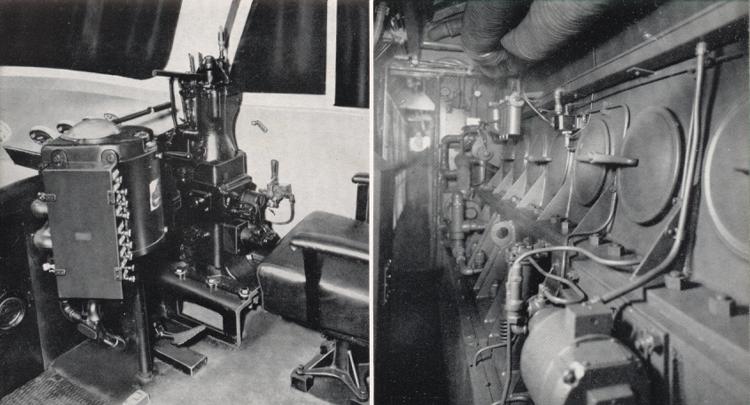

Controls at operator's station. Note leather-upholstered chair, full- view winshield and side windows. |
View alongside one of the power units. The gangways on each side make inspection easy and safe. |
