Experimental 500hp Diesel-Mechanical
- authorized 1939
- c/n 62320, class 8DM 500/1 1/4 C-1 [25]
- may have been intended to use the normally aspirated 12LV engine
- cancelled before construction began
- purchased parts such as air brake apparatus, bell, whistle, sanders, etc
were used on Westinghouse VO660 #10 in 1942
408 Engine Based Locomotives
660hp Switcher
- powered by one 700hp 408 engine
- c/n 64640, class 660/1 DE 91
- design began 1940
- cancelled due to War Production Board controls, 1942
1500hp Center Cab
- given class 750/2 DE 1
- powered by two 750hp 408 engines
- design began 1940
- suspended due to War Production Board controls, 1942
- reactivated in 1944, assigned c/n 70332
- never built since the 408 engine project was never restarted due to
the development of the 600 series engine
412 Engine Based Locomotive
1000hp Switcher
- c/n 67745, class 1000/1 DE 158 (dates to 1943)
- 1000hp V12, 400 series engine
- abandoned, likely due to War Production Board restrictions on engine development
VO Light Road Switcher
Marketing artwork and drawings from 1945 show a proposed, pointed nose, VO switcher based
light road-switcher.
|

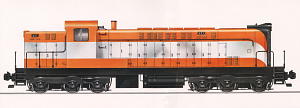

- Baldwin called this a ... "locomotive for road transfer service" - if powered by an 8VO engine the single exhaust stack places the design to before War Production Board restrictions were lifted in 1944 |
|

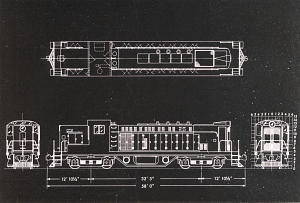

- Baldwin Bulletin 193 calls this a ... "road transfer locomotive" - if powered by an 8VO engine the four exhaust stacks places the design to after the War Production Board restrictions were lifted in 1944 |
- c/n 72235, class DS-4-4-1000/1 NA 551 (1000hp switcher class)
- abandoned, likely due to the introduction of the 600 series engine and DS locomotive models
- first light road switcher, the DRS6-4-660, produced in 1946, was for export only
- first domestic 1000hp light road switcher, the DRS4-4-1000, was produced in 1948
